Cu Foam Customized PPI Copper Metal Foam For Catalysts

Introduction:

Copper foam is a porous metal material with many unique properties and applications. It is made by adding bubble foaming agent to copper alloy, and then sintering and cooling at high temperature.

Characteristic:

1. Porous structure: Copper foam has a continuous pore structure, and the pores are connected to each other to form an open pore network.
2. Low density: The density of copper foam is relatively low, usually between 0.2-1.0 g/cm³, and has a lighter weight.
3. High specific surface area: Due to its porous structure, copper foam has a large specific surface area, which is conducive to reactions such as adsorption, catalysis, and mass transfer.
4. Excellent thermal conductivity: Copper foam has good thermal conductivity, and the thermal conductivity is usually between 100-400 W/(m·K).
5. Good mechanical properties: Although copper foam has a porous structure, it still has high strength and rigidity.
6. Electromagnetic shielding performance: Copper foam has good electromagnetic shielding performance and can be used in electronic devices and communication equipment.

Parameter:

1. Porosity: The porosity of copper foam refers to the proportion of pore volume in its total volume, usually between 70-95%.
2. Pore size: The pore size of copper foam can be adjusted according to specific application requirements, usually between 0.1-5.0 mm.
3. Pore distribution: The pore distribution of copper foam can be uniform or non-uniform, and can be designed according to application requirements.
4. Density: The density of copper foam depends on the porosity and material composition, usually between 0.2-1.0 g/cm³.
5. Thermal conductivity: The thermal conductivity of copper foam is usually between 100-400 W/(m·K). The specific value is related to the material preparation method and composition.

Details:

---

Aperture	0.1mm-10mm(can customized)
Porosity	60%-98%
Through porosity	≥98%
Bulk density	0.1-0.8g/cm3
PPI	5-130
size	Customized
Tensile Strength	5-18KPa
compressive strength	≥250KPa
mechanical strength	≥2-5KPa
High temperature resistance	≥900ºC
Heat transfer coefficient	>6W/(m2k)

3mm*300mm*200mm	2mm*500mm*500mm	2mm*100mm*100mm
1.6mm*200mm*300mm	1.6mm*100mm*100mm	1.5mm*200mm*300mm
1.0mm*300mm*200mm	1mm*500mm*500mm	0.5mm*100mm*100mm
0.3mm*100mm*100mm	0.2mm*100mm*100mm	0.1mm* 100mm*100mm
80um*100mm*100mm	30um*100mm*100mm	The size can be customized

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Related Foam

Nickel Foam	Carbon Foam	Aluminium Foam	Stainles Steel Foam	Ag Foam

Copper Metal Foam

Cu Metal Foam

High Porous Electrode Sheet

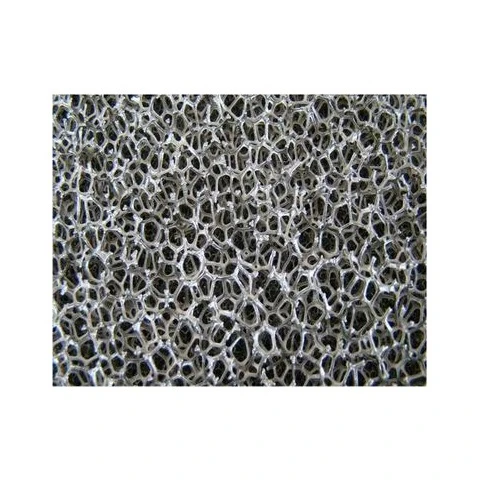

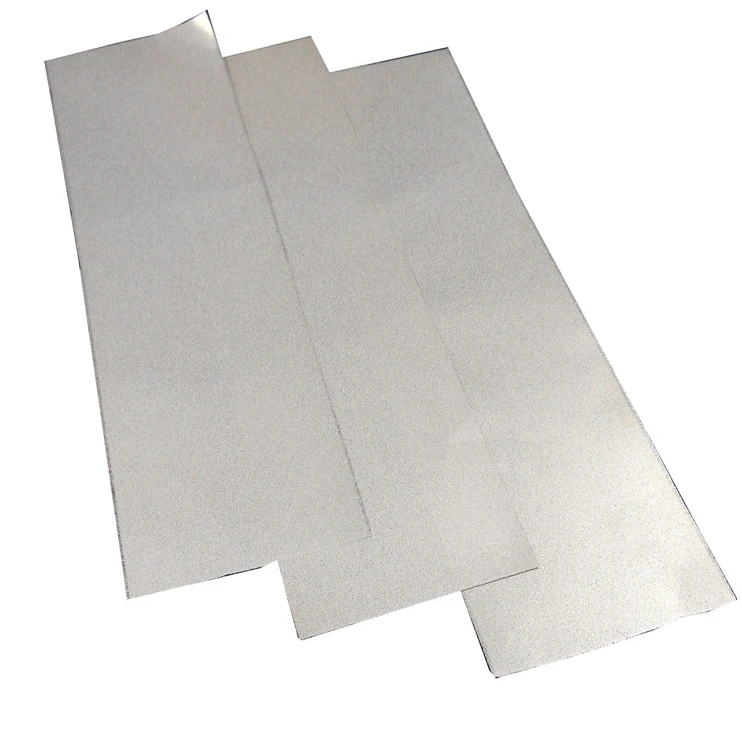

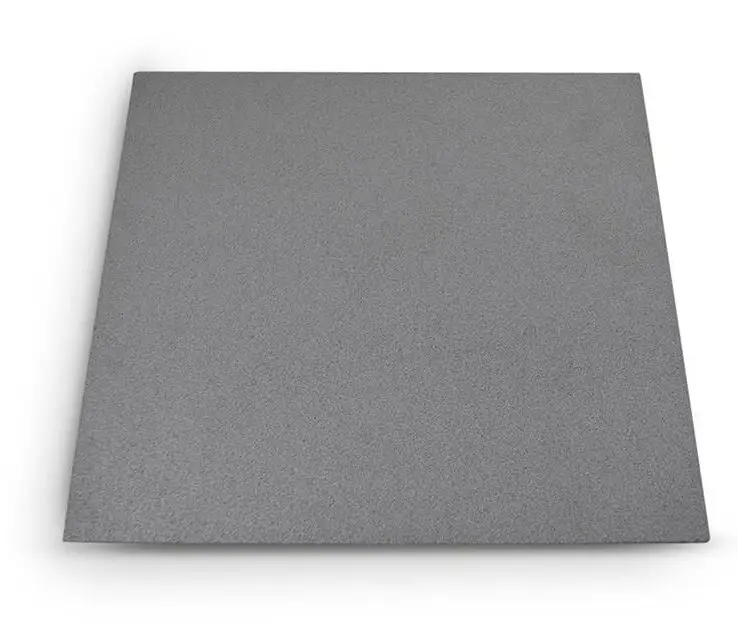

Cu Foam Customized PPI Copper Metal Foam For Catalysts Images
